🌊 What Is Brillouin Scattering?

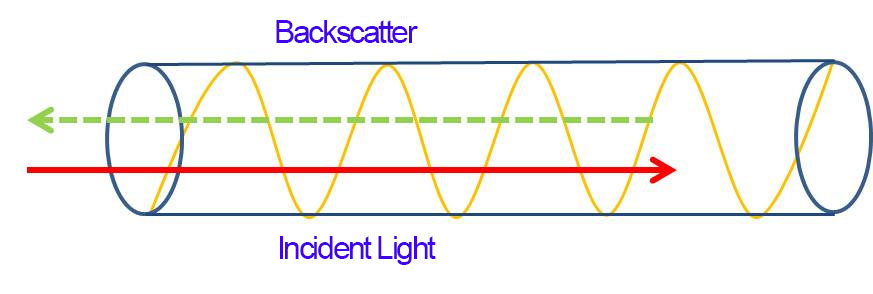

Brillouin scattering is a type of inelastic scattering that occurs when incident light interacts with the transmission medium. In this process, the frequency of the scattered light differs from that of the incident light. You can visualize it like tossing a stone into a calm water surface—the thermal motion of microscopic particles in the fiber generates sound waves, which act like the “stone,” creating ripples that spread outward. These ripples represent changes in the refractive index of the fiber, which vary with temperature and pressure, causing the frequency of the scattered light to shift.

🔍 How Is It Used in Sensing?

By detecting the frequency shift of Brillouin-scattered light, distributed sensing of temperature and strain along the fiber can be achieved. The most common method uses interferometric detection, where reference light interferes with the test light. By adjusting the frequency of the reference light, a complete Brillouin spectrum can be obtained.

🧪 Typical System Setup

The article includes a schematic diagram (Figure 2) showing a fiber optic sensing system based on Brillouin scattering. The system typically includes:

• A      pulsed laser source

• Frequency      shifter

• Reference      light path

• Couplers

• Pulse      modulator

• Sensing      fiber

• Balanced      detector

• Bandpass      filter

🛠 Applications in Engineering

Brillouin-based fiber optic sensing has broad applications in:

• Structural      health monitoring of large infrastructure

• Geological      disaster detection

• Power      industry safety monitoring

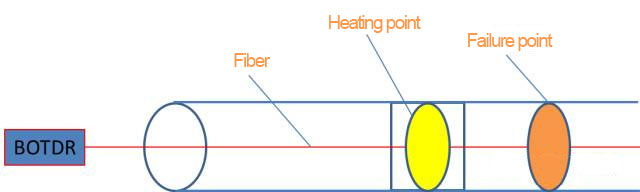

One example is the use of BOTDR (Brillouin Optical Time-Domain Reflectometry) for locating faults in submarine cables. During deployment, artificial “micro-disturbances” (e.g., heating) are introduced as reference points. By gradually approaching these points, precise fault localization is achieved.

🧵 BOTDA for Pipeline Monitoring

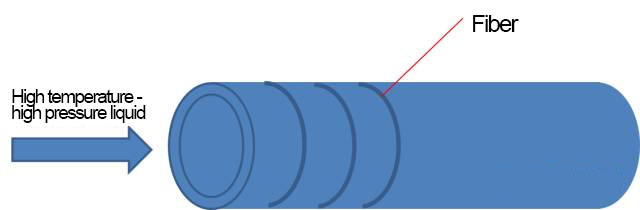

BOTDA (Brillouin Optical Time-Domain Analysis) is used for pipeline safety. Over time, corrosion causes thinning of the pipeline wall, altering stress distribution. By helically wrapping sensing fibers around the pipeline and analyzing strain data, engineers can estimate the degree of corrosion.
